Place of Origin:
China
Brand Name:
GOOWAY
Certification:
CE
Model Number:
SR(440-460)-144M-DGB6-H

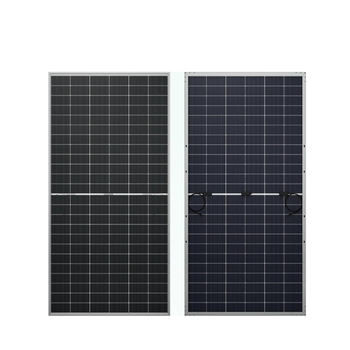

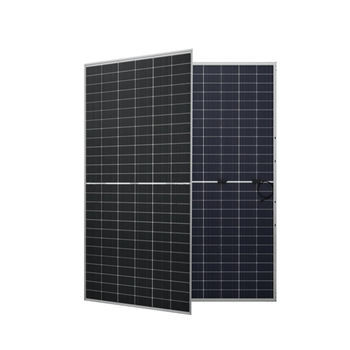

Sunry bifacial technology enables additional energy harvesting from rear side, increasing total efficiency of whole module up to 30%.
Sunry solar photovoltaic modules are designed for large electrical power requirements. With 30 years warranty, PERC offers high power, reliable performance for both on-grid, off-grid and hybrid grid solar projects.
Half-cell design brings higher efficiency which up to 30%.
Combination of series circuit and parallel circuit, reduced internal power loss.
3 times EL tests throughout the whole process to ensure best quality and superior performance.
Innovative Full-Glue-Filled design of IP68 junction box for long-time weather resistance.
MBB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.
The passivated rear side and laser grooving process of PERC cells to endow with the high efficiency.
>90% higher transmittance EVA, with higher GEL content to provide excellent encapsulation and protect cells from vibration for powerful durability.
Outstanding reliability proven by PVEL for stringent environment conditions: Sand, acid, salt and hail stones; 2400 Pa wind load and 5400 Pa snow load; Anti-PID function to guarantee high performance at low irradiance.
30 years product power warranty, 12 years material and craftsmanship warranty.
| Electrical Characteristics At Standard Test Conditions (STC) | ||||||
| Module | SR(440-460)-144M-DGB6-H | |||||
| Encapsulation | Glass/EVA/Cell/EVA/Glass/Backsheet | |||||
| Max. Power (W) | 440 | 445 | 450 | 455 | 460 | |
| Max. Power Voltage (Vmp/V) | 41.4 | 41.6 | 41.8 | 42 | 42.2 | |
| Max. Power Current (Imp/A) | 10.63 | 10.7 | 10.77 | 10.84 | 10.9 | |
| Open Circuit Voltage (Voc/V) | 49.7 | 49.9 | 50.1 | 50.3 | 50.6 | |
| Short Circuit Current (Isc/A) | 11.27 | 11.34 | 11.41 | 11.48 | 11.56 | |
| Module Efficiency (%) | 20.24 | 20.47 | 20.7 | 20.93 | 21.2 | |
| Power Tolerance (W) | 0~+5W | |||||
| Temperature Coefficient of Isc | 0.033%/°C | |||||
| Temperature Coefficient of Voc | -0.26%/°C | |||||
| Temperature Coefficient of Pmax | -0.34%/°C | |||||
| STC | Irradiance 100w/m2, Cell Temperature 25℃, Air Mass 1.5 | |||||
| Product Weight: | 27kg | Packing: | 31pcs/pallet, 726pcs/40HQ |
| Pallet dimension: | 2120*1100*1180mm | Pallet weight: | 860kg |
Advantages of Sunry 30KW Off Grid Solar Energy System Commercial Use 30Kwp 400V 3-Phase Solar Power System
You become completely independent from external energy supplies
You can combine different energy sources such as PV, wind energy and hydropower
You can expand or change your system on a modular basis at any time
Applications: Motorhome uses, static caravans, mobile homes, etc
Sunry solar panels with secure and sturdy packaging are widely sold abroad more than 86 countries, such as Lebanon, UAE, Spain, Ukraine, Poland, South Africa, Vietnam, and so on.
